What We Make

Prosthetic & Orthotic Workshop Tools

NSEW builds high-precision instruments for P&O centers, including the Router, Linisher and Dust Collector below plus the Work Station, Mandrel, Modification Vice, Moulding Die, Riveting Bar, the Shoe Horn dressing aid, the Ramp and Parallel Bar, manufactured in Delhi since 2009. See NSEW's prosthetic and orthotic equipment manufacturer page for the full portfolio by category.

From The Workshop Floor

Prosthetic Tool Range

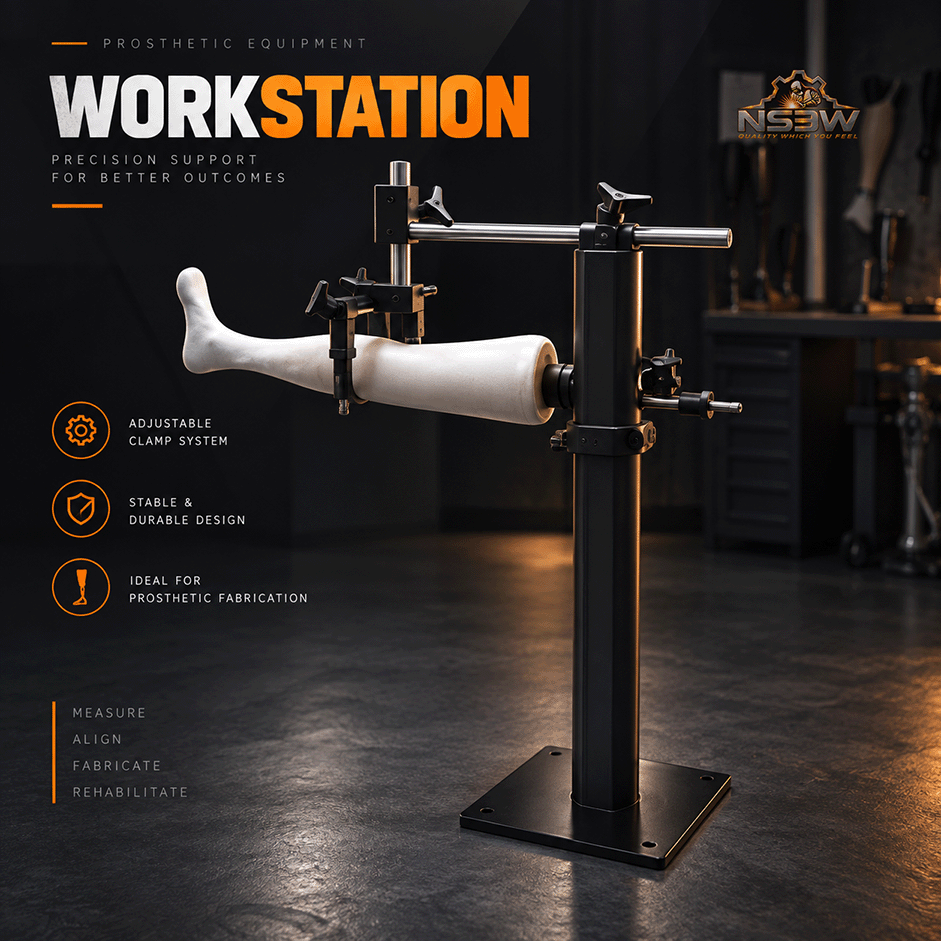

Work Station
Work Station

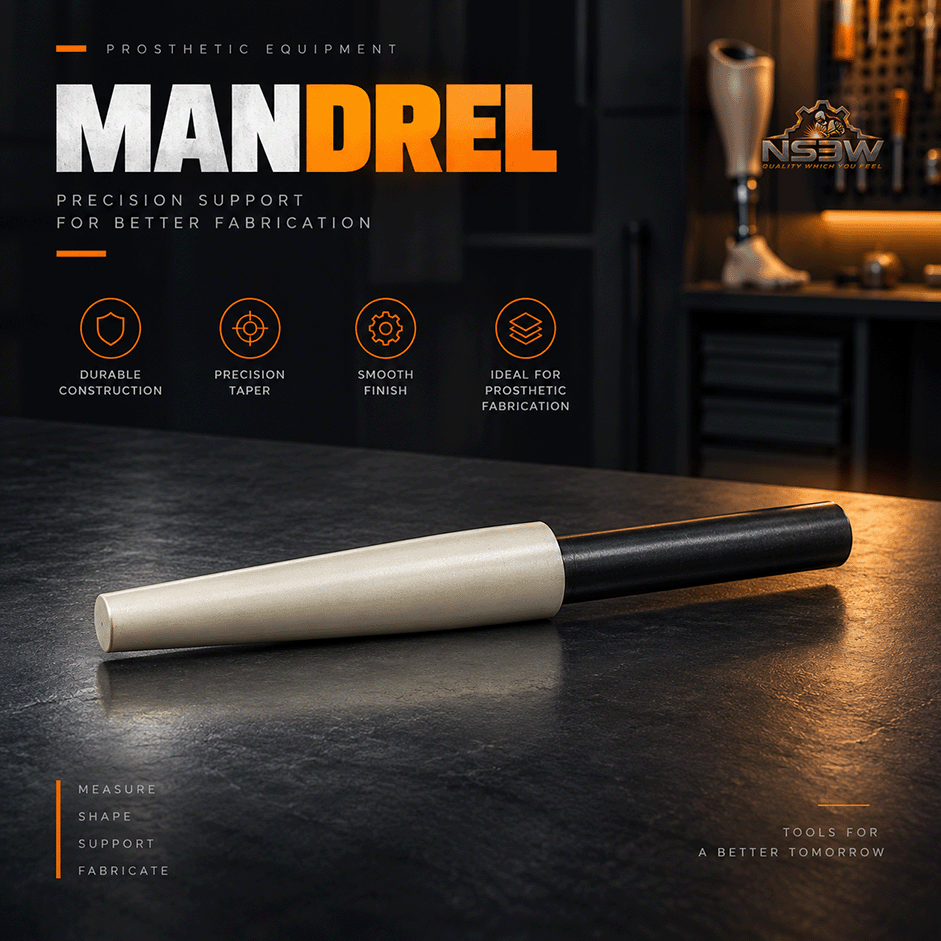

Mandrel
Mandrel

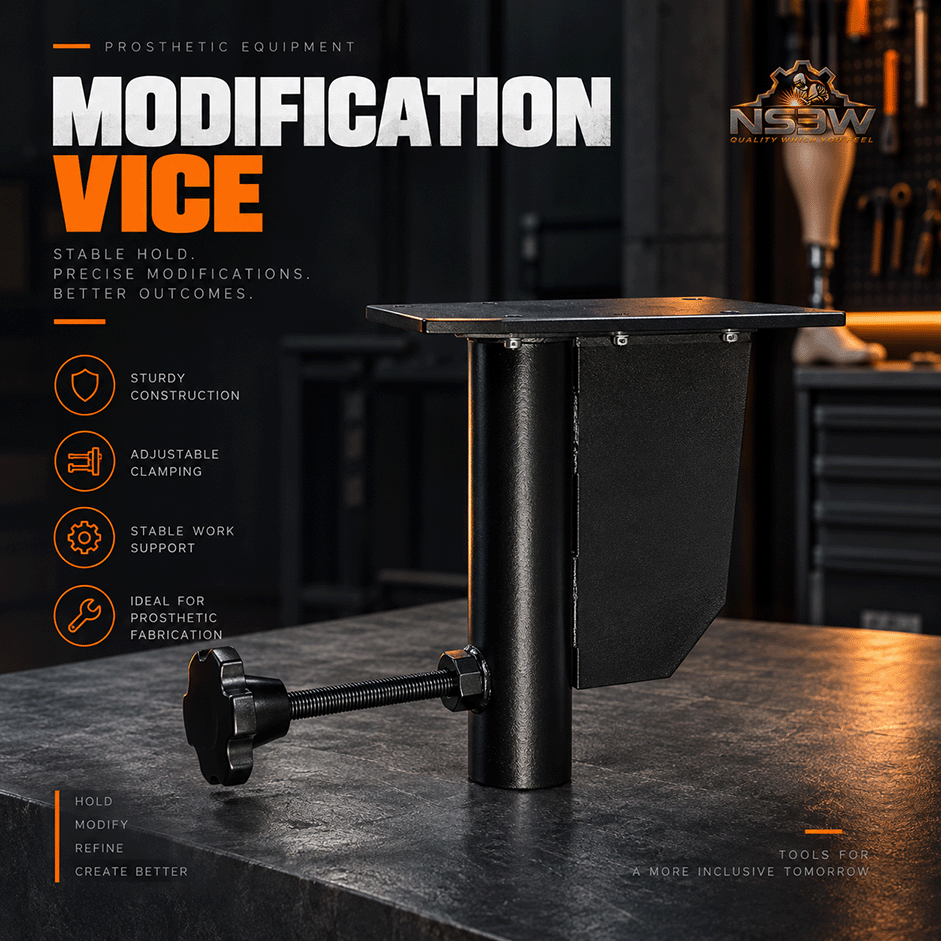

Modification Vice
Modification Vice

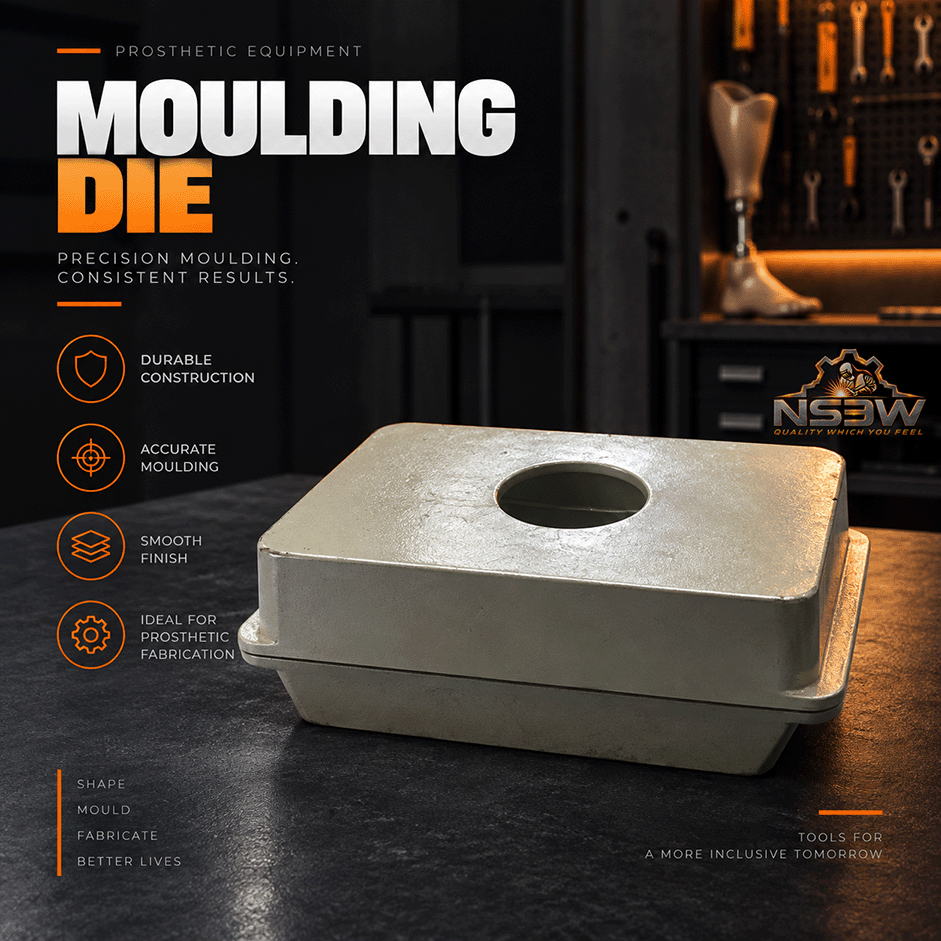

Moulding Die
Moulding Die

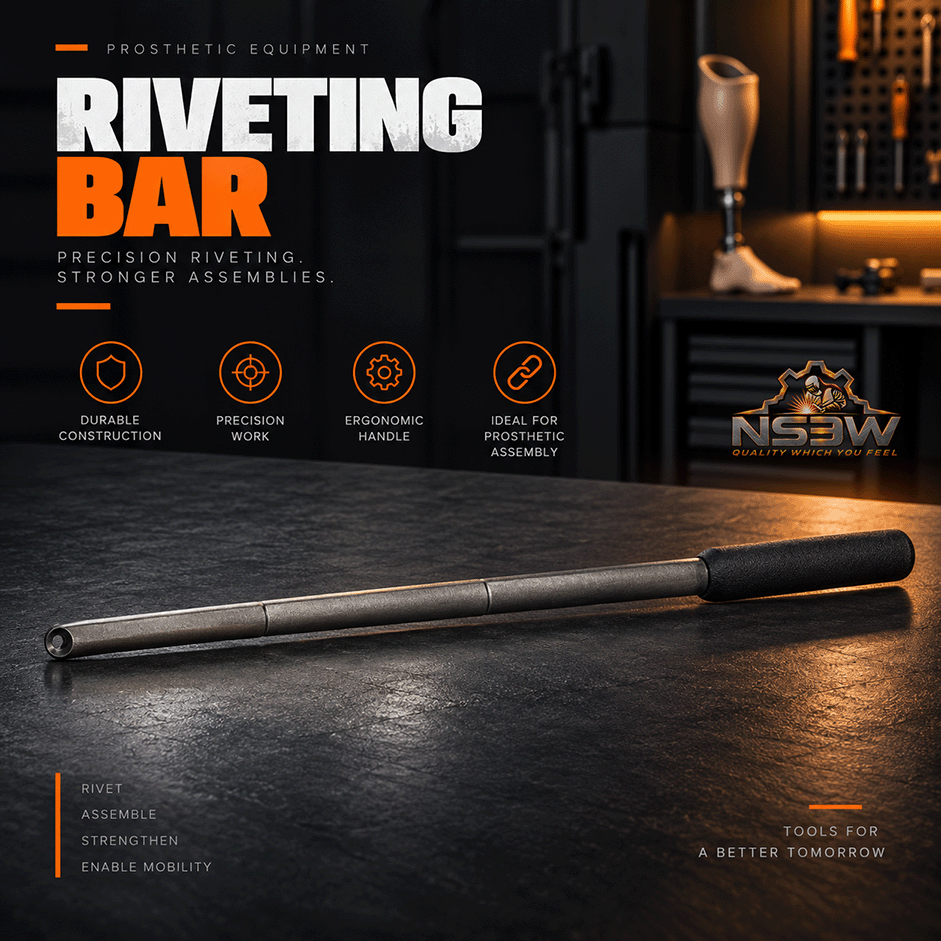

Riveting Bar
Riveting Bar

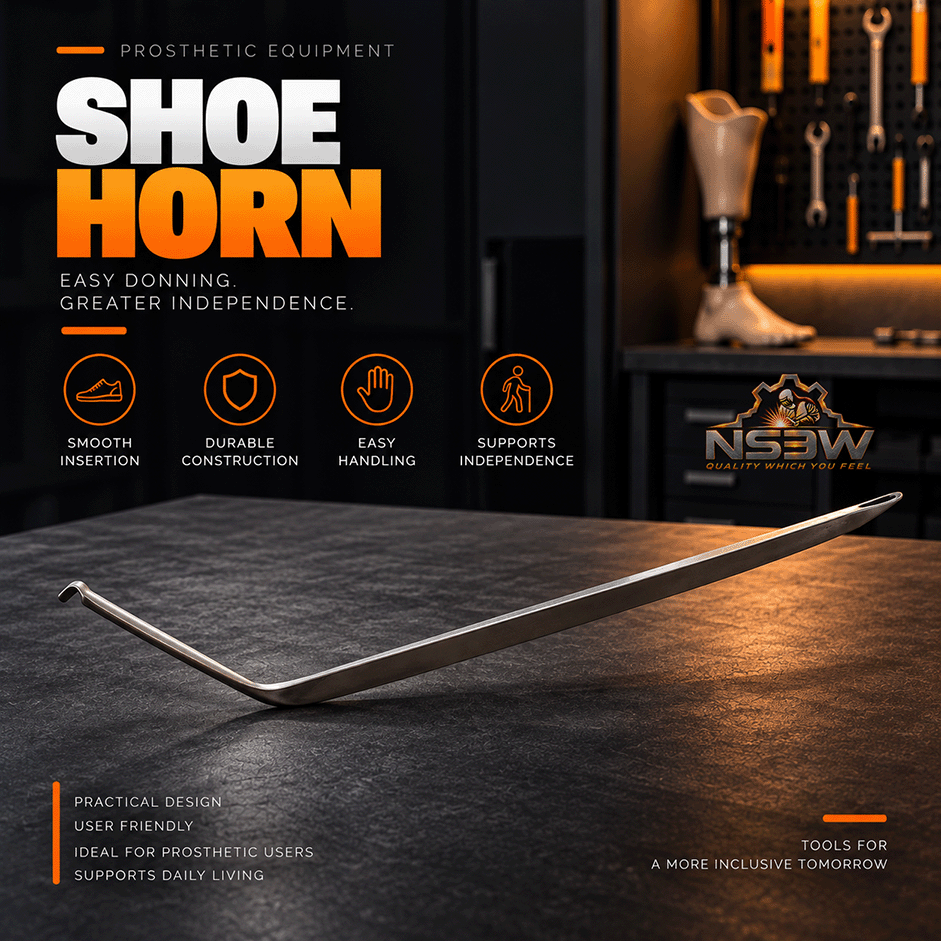

Shoe Horn
Shoe Horn

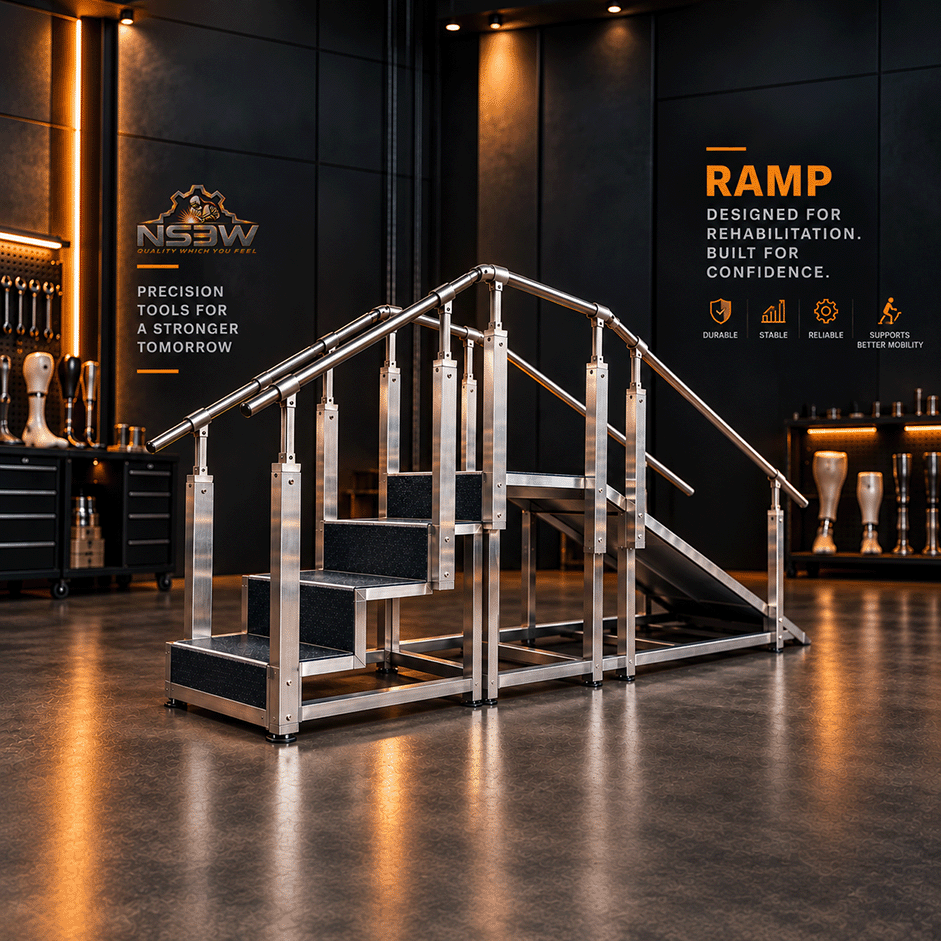

Ramp
Ramp

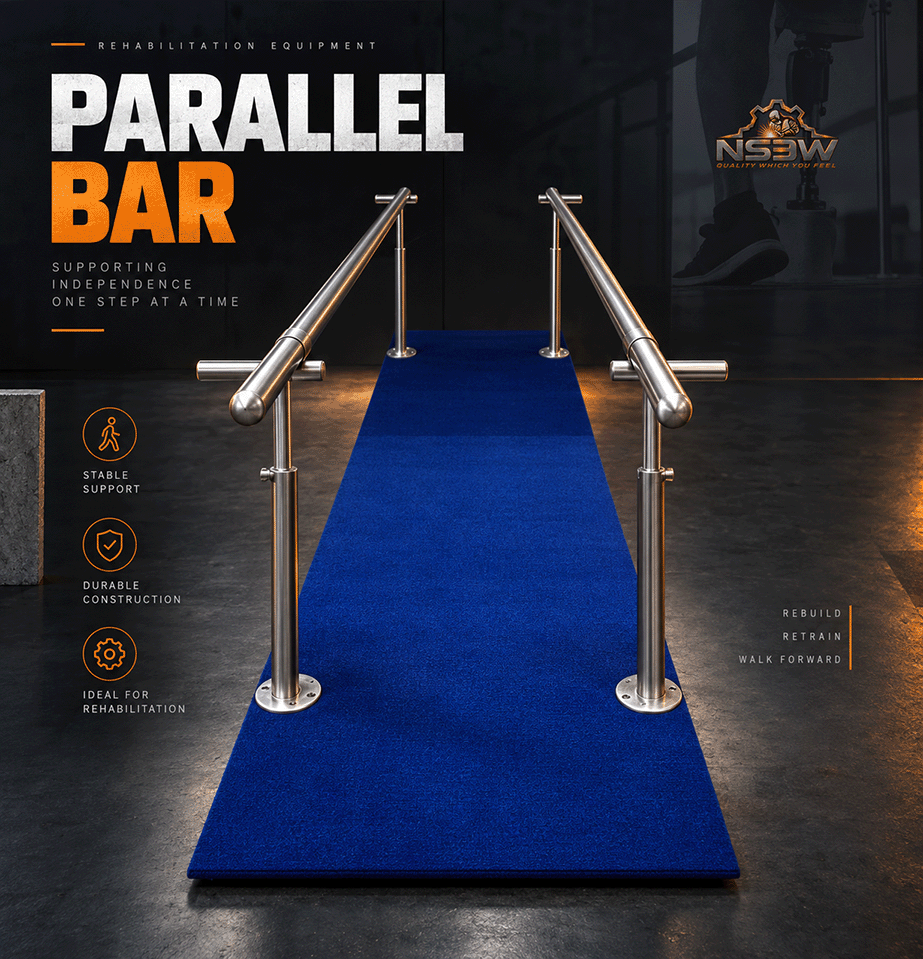

Parallel Bar
Parallel Bar

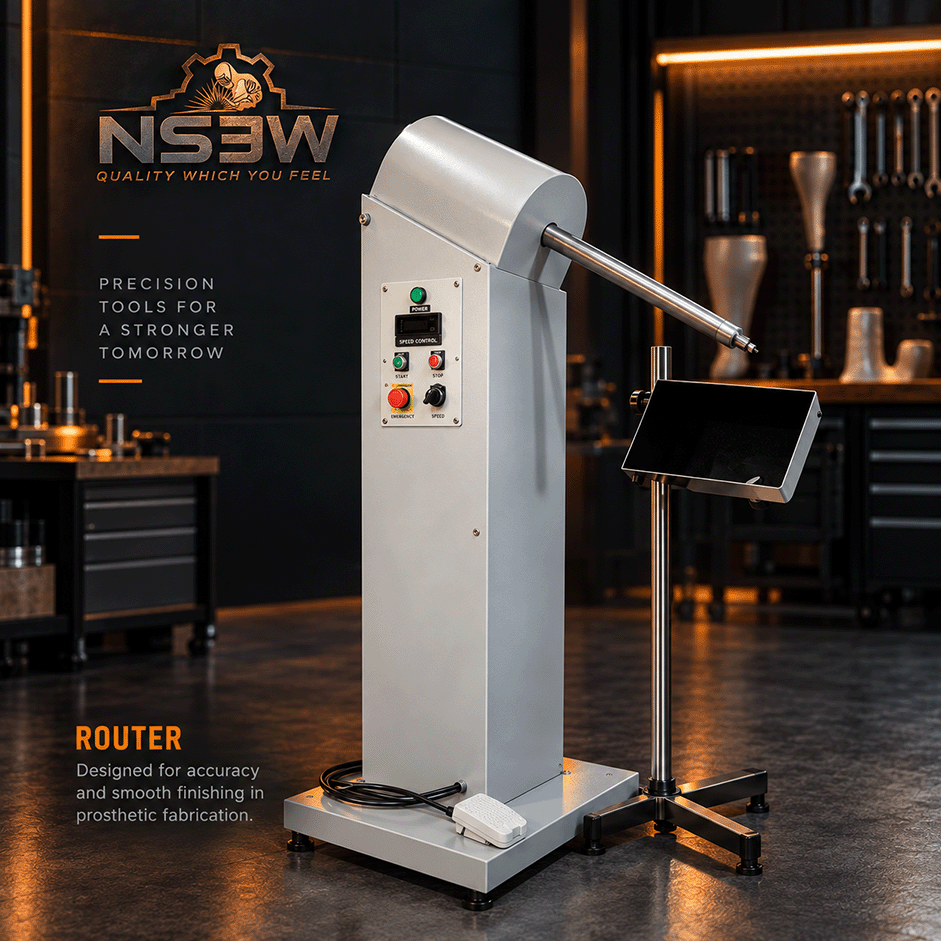

Router

SPEC / RTR-01

Features

  • Single-Speed / 2-Speed Motor Options
  • Router Motor on Sturdy Steel Base
  • Central Dust Extractor Connection
  • Adjustable Extractor Hopper
  • 5/8" or M16 Threaded Bolt

Technical Data

  • Extractor ConnectionØ 120 mm
  • Single-Speed Motor1400 rpm
  • 2-Speed Motor1400 / 2800 rpm
  • Motor Power1.1 kW
  • Electrical Supply440V / 50Hz / 3-Phase
  • Colour / FinishLight Grey Dual Tone

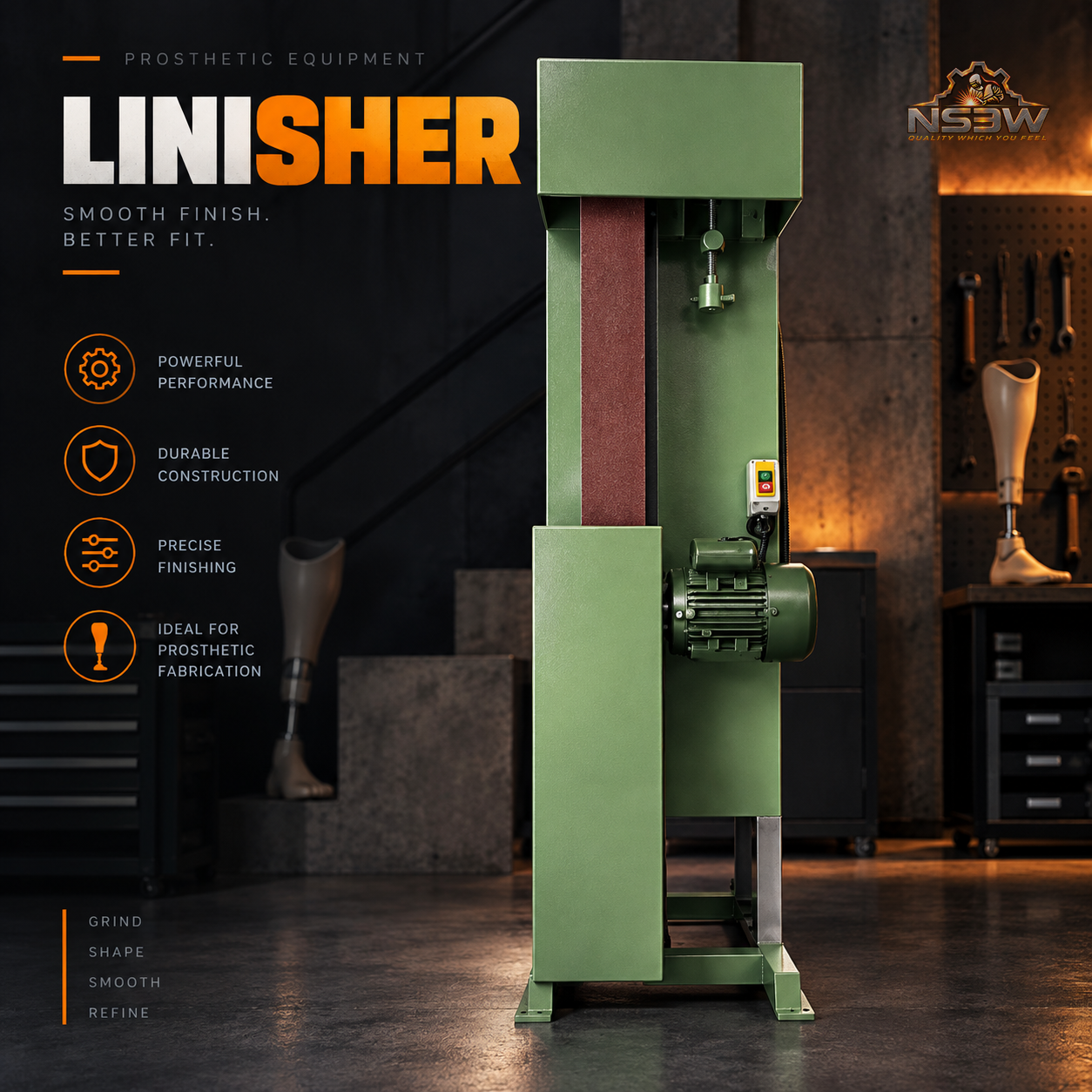

Linisher

SPEC / LNS-01

Features

  • All-Steel Body
  • 150mm Rubber-Coated Roller
  • Extraction Duct
  • Vertical & Tilting Belt-Alignment Adjustment

Technical Data

  • Belt Dimension2000 x 4 mm (L x B)
  • Motor Power1 HP
  • Power Supply220-230V, Single Phase, 50Hz

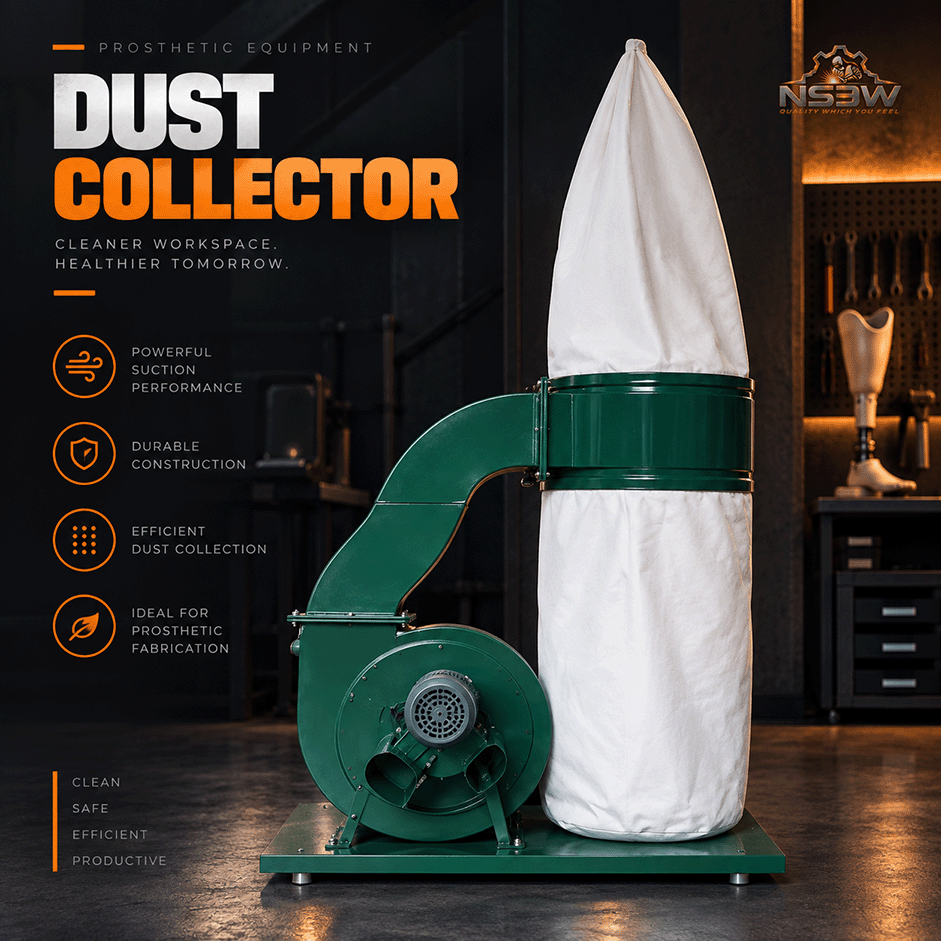

Dust Collector

SPEC / DST-01

Features

  • All-Steel Body
  • Powered Dust Collection for P&O Workshops
  • Single Phase / 3 Phase Configurations Listed
  • Motor & Voltage — Confirm Configuration at Order

Technical Data

  • BodyAll Steel
  • Phase OptionsSingle Phase / 3 Phase
  • OperationPowered

Common Questions

Prosthetic Tools FAQ

What are the technical specifications of the NSEW Router?

The NSEW Router is available in single-speed (1400 rpm) or 2-speed (1400/2800 rpm) motor configurations, mounted on a sturdy steel base. It has a Ø120 mm connection for a central dust-extraction system with an adjustable extractor hopper, a 5/8" or M16 threaded bolt, and runs on 440V / 50Hz / 3-phase / 1.1kW power in a light grey dual tone finish.

What are the technical specifications of the NSEW Linisher?

The NSEW Linisher has an all-steel body with a 150mm diameter rubber-coated roller designed to reduce vibration, vertical and tilting belt-alignment adjustment, a 2000 x 4mm belt, an extraction duct, and runs on 220-230V single phase 1HP power at 50Hz.

What is the NSEW Prosthetic Cast Mandrel used for?

It's a tapered mandrel used during preparation of positive plaster casts in prosthetic and orthotic fabrication, providing internal support and, where the fabrication setup is designed for it, helping form the longitudinal passage used during vacuum-forming and lamination.

What is a prosthetic modification vice?

A prosthetic modification vice is a workshop holding fixture used to securely position compatible mandrels, casts, models or workpieces during prosthetic and orthotic fabrication and modification.

How can I get a quote from NSEW?

Call +91 98183 13456 or +91 84597 57199, email nsew234@gmail.com, or use the enquiry form below. The workshop is open Tuesday to Sunday, 08:30 to 18:00.
